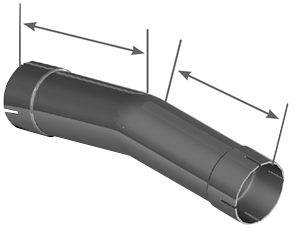

15° DEG OD-OD BEND
	PN# BEND MM IN CL DIM. STYLE 76-02400 15 DEG 76.20 3.00 3.00 STANDARD 76-02410 76.20 3.00 6.50 LONG 76-03400 88.90 3.50 3.50 STANDARD 76-03410 88.90 3.50 7.00 LONG 76-04400 101.60 4.00 4.00 STANDARD 76-04410 101.60 4.00 8.50 LONG 76-05400 114.30 4.50 4.00 STANDARD 76-05410 114.30 4.50 9.50 LONG 76-06400 127.00 5.00 4.50 STANDARD 76-06410 127.00 5.00 10.50 LONG 76-07400 152.40 6.00 5.50 STANDARD 76-07410 152.40 6.00 11.50 LONG 76-08400 203.20 8.00 7.50 STANDARD 76-08410 203.20 8.00 16.50 LONG

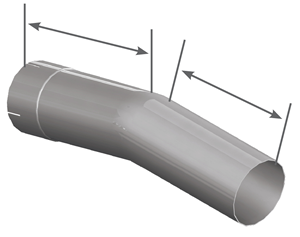

15° DEG OD-ID BEND
	PN# BEND MM IN CL DIM. STYLE 77-02400 15 DEG 76.20 3.00 3.00 STANDARD 77-02410 76.20 3.00 6.50 LONG 77-03400 88.90 3.50 3.50 STANDARD 77-03410 88.90 3.50 7.00 LONG 77-04400 101.60 4.00 4.00 STANDARD 77-04410 101.60 4.00 8.50 LONG 77-05400 114.30 4.50 4.00 STANDARD 77-05410 114.30 4.50 9.50 LONG 77-06400 127.00 5.00 4.50 STANDARD 77-06410 127.00 5.00 10.50 LONG 77-07400 152.40 6.00 5.50 STANDARD 77-07410 152.40 6.00 11.50 LONG 77-08400 203.20 8.00 7.50 STANDARD 77-08410 203.20 8.00 16.50 LONG
15° DEG ID-ID BEND
	PN# BEND MM IN CL DIM. STYLE 78-02400 15 DEG 76.20 3.00 3.00 STANDARD 78-02410 76.20 3.00 6.50 LONG 78-03400 88.90 3.50 3.50 STANDARD 78-03410 88.90 3.50 7.00 LONG 78-04400 101.60 4.00 4.00 STANDARD 78-04410 101.60 4.00 8.50 LONG 78-05400 114.30 4.50 4.00 STANDARD 78-05410 114.30 4.50 9.50 LONG 78-06400 127.00 5.00 4.50 STANDARD 78-06410 127.00 5.00 10.50 LONG 78-07400 152.40 6.00 5.50 STANDARD 78-07410 152.40 6.00 11.50 LONG 78-08400 203.20 8.00 7.50 STANDARD 78-08410 203.20 8.00 16.50 LONG
