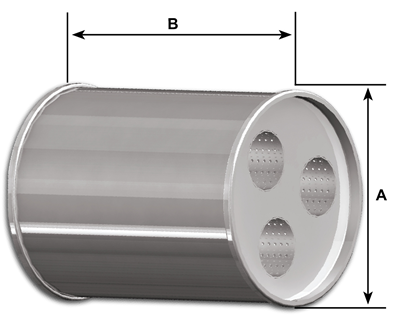

Acoustic Module
A B FLOW SLEEVE STYLE MATERIAL PN# MM IN MM IN 34-0000110 129 5.08 152.40 6.00 YES 1 CORE 304 SS 34-0000120 129 5.08 152.40 6.00 YES 3 CORE 34-0100110 155 6.10 152.40 6.00 YES 1 CORE 34-0100120 155 6.10 152.00 6.00 YES 3 CORE 34-0102110 155 6.10 203.20 8.00 YES 1 CORE 34-0102120 155 6.10 203.20 8.00 YES 3 CORE 34-0201110 206 8.11 177.80 7.00 YES 1 CORE 34-0201120 206 8.11 177.80 7.00 YES 3 CORE 34-0202110 206 8.11 203.20 8.00 YES 1 CORE 34-0202120 206 8.11 203.20 8.00 YES 3 CORE 34-0203110 206 8.11 304.80 12.00 YES 1 CORE 34-0203120 206 8.11 304.80 12.00 YES 3 CORE 34-0303110 247 9.72 304.80 12.00 YES 1 CORE 34-0303120 247 9.72 304.80 12.00 YES 3 CORE 34-0403110 260 10.24 304.80 12.00 YES 1 CORE 34-0403120 260 10.24 304.80 12.00 YES 3 CORE 34-0503110 284 11.18 304.80 12.00 YES 1 CORE 34-0503120 284 11.18 304.80 12.00 YES 3 CORE
Material: 304 Stainless Steel and 2Ply
